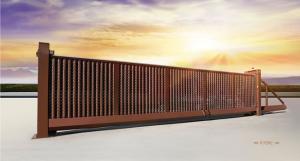

Villa Security Galvanized Trackless Automatic Sliding Gates With Mesh / Partition

Place of Origin : China

Brand Name : Hongmen

Certification : CE

Model Number : P709C

MOQ : L=4m * H=1.5m

Packaging Details : Plywood + Iron Rack

Delivery Time : 10 Working Days

Payment Terms : TT With 50% Deposit, 50% Payable Upon Goods Dispatch

Supply Ability : 15.000m / month

Contact Now

Security Galvanized Sliding Gate , Automatic Trackless Heavy Duty Cantilever Gates , Auto Gate

Features:

  1. Galvanized Zinc
  2. Comes With Mesh/Partition
  3. Heavy Duty
  4. Industrial Grade
  5. CE Certified.
  6. EMO Button (Emergency Stop Button).
  7. Trackless Operation.
  8. Industrial Heavy Duty Usage
  9. Wireless Remote Control (433MHz).
  10. Powder Coating With Interpon Brand Powder
  11. Dispatch in Modules Form (Transportation Friendly).
  12. Smart Power Outage Clutch.
  13. Anti- Collision IR Sensor.
  14. Anti- Climb Photo Cell.
  15. Max Length Is 30m.

Specifications:

Operating Voltage 220 VAC ±10% (50Hz ~ 60Hz)
Operating Temperature ˗ 25˚C ~ + 75˚C
Environmental Humidity ≤ 90%
Operating Speed 16.7m/min
Motor Power Rating 370W ~ 550W
Motor RPM 1400r/min
IP Rating IP44
Insulation Grade F
Motor Output Torque 1.6 N.m
Current (A) 15A
Speed Reduction Ratio 30 to 1
Wireless Remote Distance

50m

Parts Material Specsification
mm
Main Slide Bar Q235 Galvanized Zinc 330*300
Upper Beam Q195 Galvanized Zinc 70*70*T4
Gate Frame Q195 Galvanized Zinc 80*60*T4
Upright Post 6063-T5 180*100*T3
Control Box Cold-Rolled Plate 280*182*T2
Pull Rod Q195 Galvanized Zinc 70*70*T4
Traingle Rod Beam Q195 Galvanized Zinc 25*25*T1.2
Pickets Q195 Galvanized Zinc 60*40*T4
